dmriprep.workflows.dwi.hmc module

Head motion and eddy-current correction estimation workflows.

These workflows estimate transforms without applying them, following the fit/transform architecture. Motion and eddy current distortions are estimated using NiFreeze’s leave-one-out cross-validation approach.

dmriprep.workflows.dwi.hmc.init_dwi_hmc_flirt_wf(*, omp_nthreads=1, name='dwi_hmc_flirt_wf')View on GitHub

Build a fallback HMC workflow using FSL FLIRT.

This is a simpler alternative to NiFreeze-based estimation that uses FSL’s FLIRT for volume-to-reference registration. It is faster but less accurate, particularly for high b-value data where signal dropout makes direct registration challenging.

Parameters:

  • omp_nthreads – Number of threads for parallel processing.

  • name – Workflow name.

Inputs:

  • dwi_file – DWI NIfTI file.

  • in_bvec – File path of the b-vectors.

  • in_bval – File path of the b-values.

  • dwi_reference – Pre-computed b=0 reference image.

  • dwi_mask – Brain mask in DWI space.

Outputs:

  • motion_xfm – Per-volume affine transforms.

  • out_bvec – Motion-corrected gradient directions.

dmriprep.workflows.dwi.hmc.init_dwi_hmc_wf(*, omp_nthreads=1, model='DTI', name='dwi_hmc_wf')View on GitHub

Build a workflow for head motion and eddy-current estimation.

This workflow uses NiFreeze to estimate per-volume affine transforms for head motion correction and eddy-current distortion correction. The estimation uses leave-one-out cross-validation with diffusion models to predict each volume and register predicted to actual.

Importantly, this workflow only estimates transforms - it does not apply them. This enables downstream composition of all transforms for single-interpolation resampling.

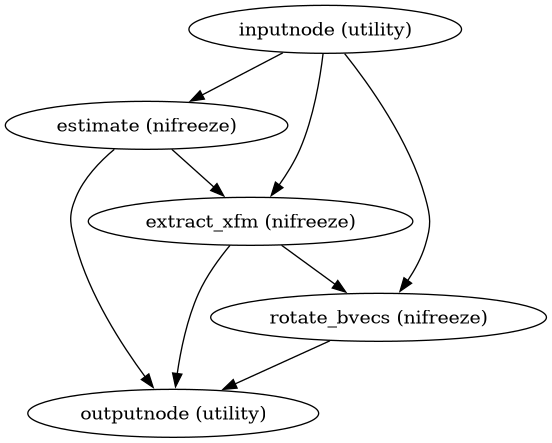

Workflow Graph
../_images/dmriprep-workflows-dwi-hmc-1.png

(Source code, png, svg, pdf)

Parameters:

  • omp_nthreads – Number of threads for parallel processing.

  • model – Diffusion model for leave-one-out prediction (‘DTI’, ‘DKI’, ‘GP’, ‘average’).

  • name – Workflow name.

Inputs:

  • dwi_file – DWI NIfTI file.

  • in_bvec – File path of the b-vectors.

  • in_bval – File path of the b-values.

  • dwi_reference – Pre-computed b=0 reference image.

  • dwi_mask – Brain mask in DWI space.

Outputs:

  • motion_xfm – Per-volume affine transforms (list of files).

  • out_bvec – Motion-corrected (rotated) gradient directions.

  • motion_params – Motion parameters TSV file (BIDS confounds format).

  • estimated_file – HDF5 file containing full estimation results.

Notes

The estimation approach varies by model:

  • DTI: Tensor model, fast but less accurate for high b-values

  • DKI: Kurtosis model, better for multi-shell data

  • GP: Gaussian Process, most flexible but computationally intensive

  • average: Simple averaging, fastest but least accurate
