Susceptibility Distortions (and Correction) in a nutshell¶
This notebook is an attempt to produce educational materials that would help an MRI beginner understand the problem of SD(C).
[1]:
%matplotlib inline
[2]:
from matplotlib import pyplot as plt
from mpl_toolkits.axes_grid1.inset_locator import inset_axes
plt.rcParams["figure.figsize"] = (12, 9)
plt.rcParams["xtick.bottom"] = False
plt.rcParams["xtick.labelbottom"] = False
plt.rcParams["ytick.left"] = False
plt.rcParams["ytick.labelleft"] = False
Some tools we will need:
[3]:
from itertools import product
import numpy as np
from scipy import ndimage as ndi
import nibabel as nb
from templateflow.api import get
[4]:
def get_centers(brain_slice):
samples_x = np.arange(6, brain_slice.shape[1] - 3, step=12).astype(int)
samples_y = np.arange(6, brain_slice.shape[0] - 3, step=12).astype(int)
return zip(*product(samples_x, samples_y))
def plot_brain(brain_slice, brain_cmap="RdPu_r", grid=False, voxel_centers_c=None):
fig, ax = plt.subplots()
# Plot image
ax.imshow(brain_slice, cmap=brain_cmap, origin="lower");
# Generate focus axes
axins = inset_axes(
ax,
width="200%",
height="100%",
bbox_to_anchor=(1.05, .6, .5, .4),
bbox_transform=ax.transAxes,
loc=2,
)
axins.set_aspect("auto")
# sub region of the original image
x1, x2 = (np.array((-30, 30)) + (z_s.shape[1] - 1) * 0.5).astype(int)
y1, y2 = np.round(np.array((-15, 15)) + (z_s.shape[0] - 1) * 0.70).astype(int)
axins.imshow(brain_slice[y1:y2, x1:x2], extent=(x1, x2, y1, y2), cmap=brain_cmap, origin="lower");
axins.set_xlim(x1, x2)
axins.set_ylim(y1, y2)
axins.set_xticklabels([])
axins.set_yticklabels([])
ax.indicate_inset_zoom(axins, edgecolor="black");
if grid:
params = {}
if voxel_centers_c is not None:
params["c"] = voxel_centers_c
params["cmap"] = "seismic"
# Voxel centers
ax.scatter(*get_centers(brain_slice), s=20, **params)
axins.scatter(*get_centers(brain_slice), s=80, **params)
# Voxel edges
e_i = np.arange(0, z_slice.shape[1], step=12).astype(int)
e_j = np.arange(0, z_slice.shape[0], step=12).astype(int)
# Plot grid
ax.plot([e_i[1:-1]] * len(e_j), e_j, c='k', lw=1, alpha=0.3);
ax.plot(e_i, [e_j[1:-1]] * len(e_i), c='k', lw=1, alpha=0.3);
axins.plot([e_i[1:-1]] * len(e_j), e_j, c='k', lw=1, alpha=0.3);
axins.plot(e_i, [e_j[1:-1]] * len(e_i), c='k', lw=1, alpha=0.3);
return fig, ax, axins
Data: a brain¶

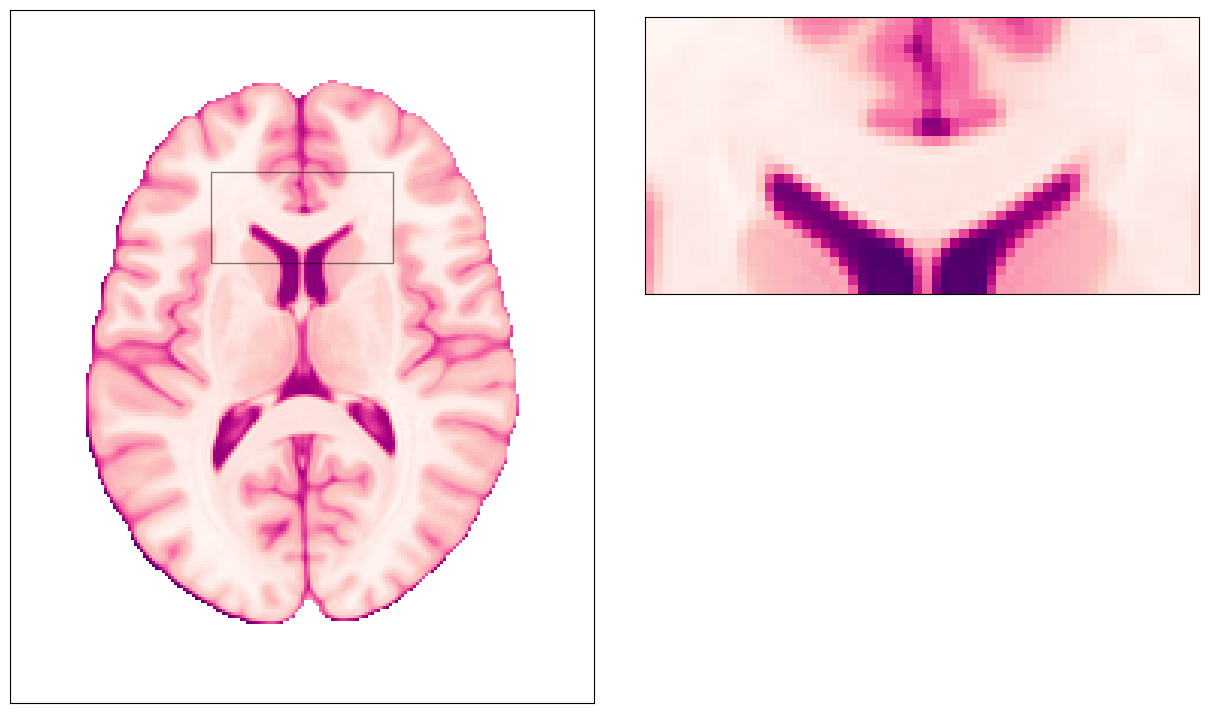

Let’s start getting some brain image model to work with, select a particular axial slice at the middle of it and visualize it.
[5]:
data = np.asanyarray(nb.load(get("MNI152NLin2009cAsym", desc="brain", resolution=1, suffix="T1w")).dataobj);
[6]:
z_slice = np.swapaxes(data[..., 90], 0, 1).astype("float32")
z_s = z_slice.copy()
z_slice[z_slice == 0] = np.nan
[7]:
plot_brain(z_slice);
Sampling that brain and MRI¶

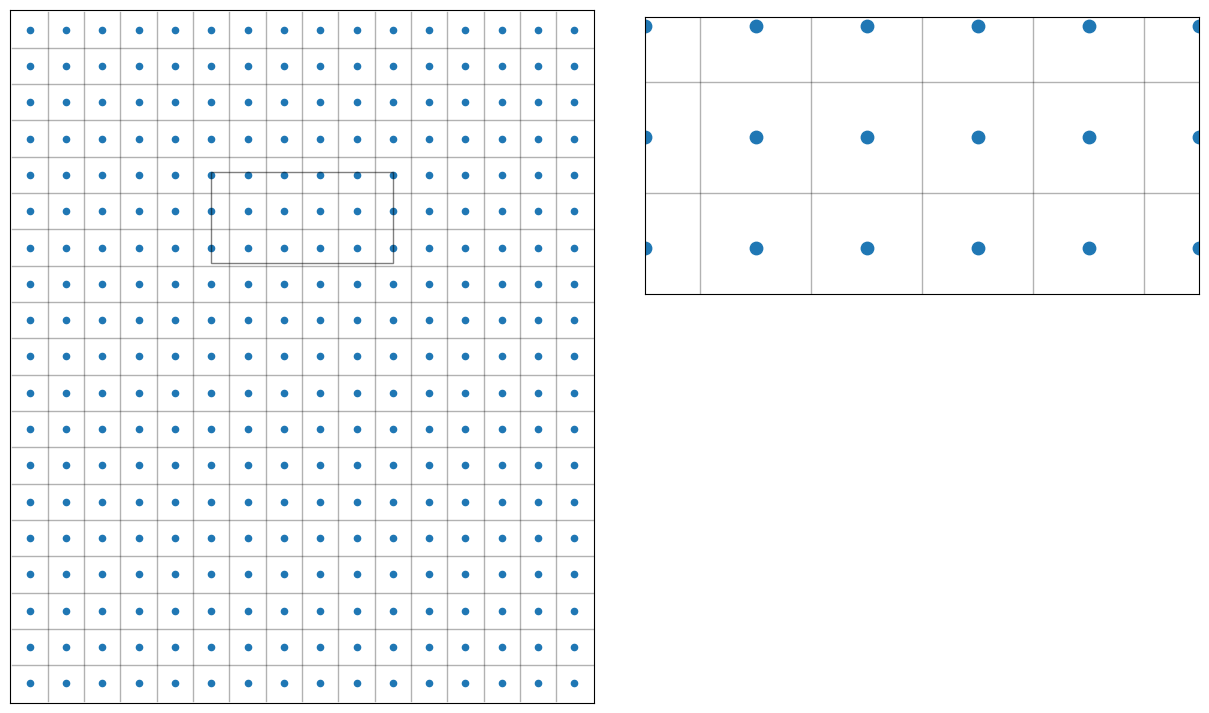

MRI will basically define an extent of phyisical space inside the scanner bore that will be imaged (field-of-view, Fov). That continuous space will be discretized into a number of voxels, and the signal corresponding to each voxel (a voxel is a volume element) will be measured at the center of the voxel (blue dots in the picture).
[8]:
plot_brain(np.ones_like(z_slice) * np.nan, grid=True);

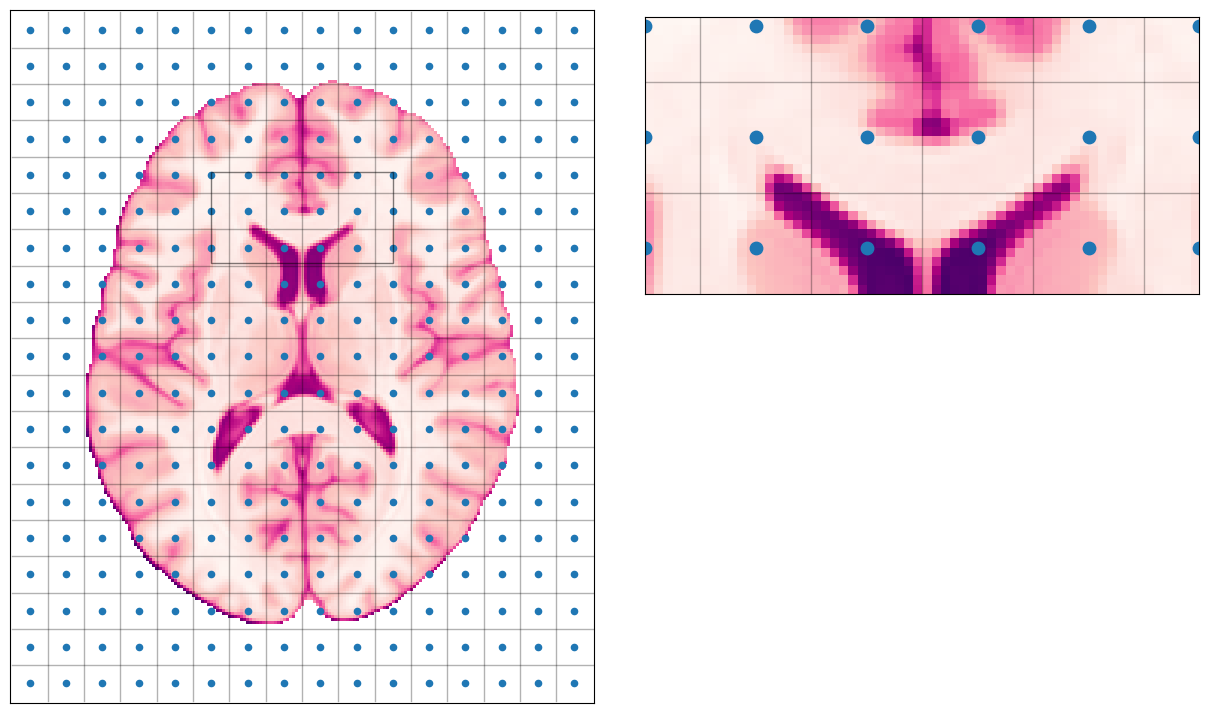

Which means, this discretization of the space inside the scanner will be imposed on the imaged object (a brain in our case):
[9]:
plot_brain(z_slice, grid=True);

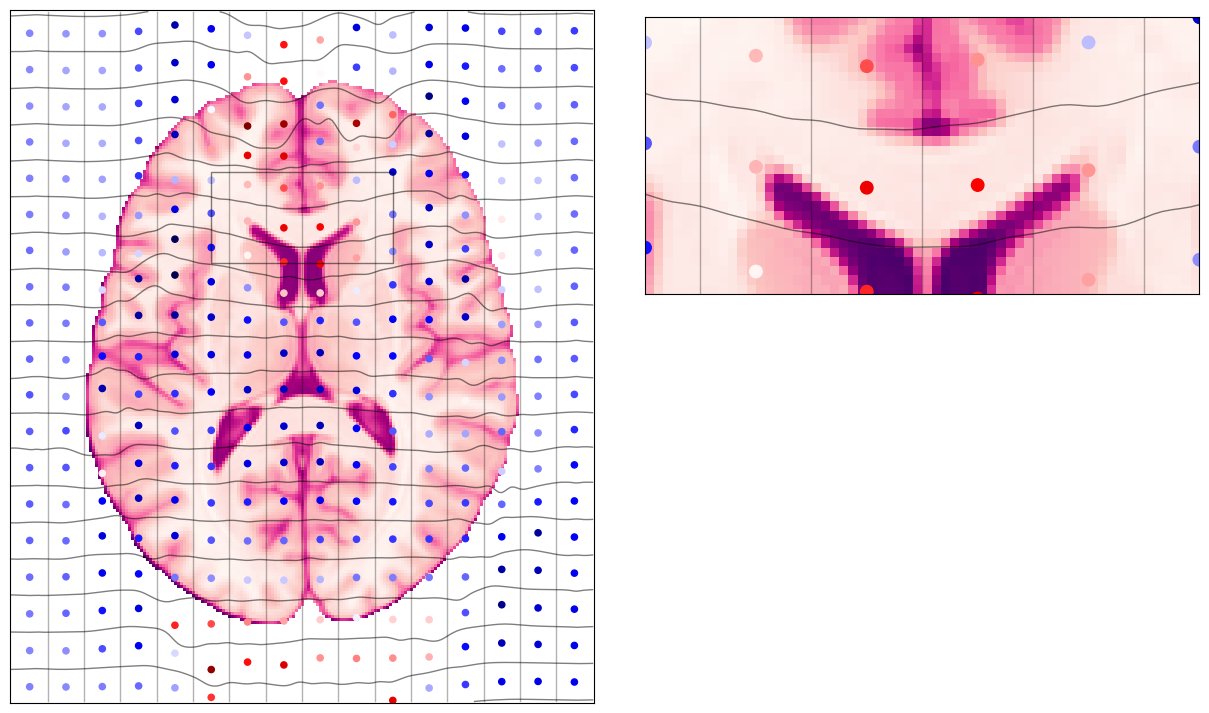

The \(B_\text{0}\) field is not absolutely uniform¶
Indeed, inserting an object in the scanner bore perturbs the nominal \(B_\text{0}\) field, which should be constant all across the FoV (e.g., 3.0 T in all the voxels above, if your scanner is 3T).
In particular, some specific locations where the air filling the empty space around us is close to tissues, these deviations from the nominal \(B_\text{0}\) are larger.
[10]:
field = np.asanyarray(nb.load("fieldmap.nii.gz").dataobj)
[11]:
fig, ax, axins = plot_brain(z_slice, grid=True)
ax.imshow(field, cmap="seismic", origin="lower", alpha=np.ones_like(field) * 0.3);
Error in callback <function _draw_all_if_interactive at 0x7fafe86acd60> (for post_execute), with arguments args (),kwargs {}:
---------------------------------------------------------------------------
ValueError Traceback (most recent call last)
File /opt/hostedtoolcache/Python/3.12.3/x64/lib/python3.12/site-packages/matplotlib/pyplot.py:265, in _draw_all_if_interactive()
263 def _draw_all_if_interactive() -> None:
264 if matplotlib.is_interactive():
--> 265 draw_all()
File /opt/hostedtoolcache/Python/3.12.3/x64/lib/python3.12/site-packages/matplotlib/_pylab_helpers.py:131, in Gcf.draw_all(cls, force)
129 for manager in cls.get_all_fig_managers():
130 if force or manager.canvas.figure.stale:
--> 131 manager.canvas.draw_idle()
File /opt/hostedtoolcache/Python/3.12.3/x64/lib/python3.12/site-packages/matplotlib/backend_bases.py:1919, in FigureCanvasBase.draw_idle(self, *args, **kwargs)
1917 if not self._is_idle_drawing:
1918 with self._idle_draw_cntx():
-> 1919 self.draw(*args, **kwargs)
File /opt/hostedtoolcache/Python/3.12.3/x64/lib/python3.12/site-packages/matplotlib/backends/backend_agg.py:387, in FigureCanvasAgg.draw(self)
384 # Acquire a lock on the shared font cache.
385 with (self.toolbar._wait_cursor_for_draw_cm() if self.toolbar
386 else nullcontext()):
--> 387 self.figure.draw(self.renderer)
388 # A GUI class may be need to update a window using this draw, so
389 # don't forget to call the superclass.
390 super().draw()
File /opt/hostedtoolcache/Python/3.12.3/x64/lib/python3.12/site-packages/matplotlib/artist.py:95, in _finalize_rasterization.<locals>.draw_wrapper(artist, renderer, *args, **kwargs)
93 @wraps(draw)
94 def draw_wrapper(artist, renderer, *args, **kwargs):
---> 95 result = draw(artist, renderer, *args, **kwargs)
96 if renderer._rasterizing:
97 renderer.stop_rasterizing()
File /opt/hostedtoolcache/Python/3.12.3/x64/lib/python3.12/site-packages/matplotlib/artist.py:72, in allow_rasterization.<locals>.draw_wrapper(artist, renderer)
69 if artist.get_agg_filter() is not None:
70 renderer.start_filter()
---> 72 return draw(artist, renderer)
73 finally:
74 if artist.get_agg_filter() is not None:
File /opt/hostedtoolcache/Python/3.12.3/x64/lib/python3.12/site-packages/matplotlib/figure.py:3155, in Figure.draw(self, renderer)
3152 # ValueError can occur when resizing a window.
3154 self.patch.draw(renderer)
-> 3155 mimage._draw_list_compositing_images(
3156 renderer, self, artists, self.suppressComposite)
3158 renderer.close_group('figure')
3159 finally:
File /opt/hostedtoolcache/Python/3.12.3/x64/lib/python3.12/site-packages/matplotlib/image.py:132, in _draw_list_compositing_images(renderer, parent, artists, suppress_composite)
130 if not_composite or not has_images:
131 for a in artists:
--> 132 a.draw(renderer)
133 else:
134 # Composite any adjacent images together
135 image_group = []
File /opt/hostedtoolcache/Python/3.12.3/x64/lib/python3.12/site-packages/matplotlib/artist.py:72, in allow_rasterization.<locals>.draw_wrapper(artist, renderer)
69 if artist.get_agg_filter() is not None:
70 renderer.start_filter()
---> 72 return draw(artist, renderer)
73 finally:
74 if artist.get_agg_filter() is not None:
File /opt/hostedtoolcache/Python/3.12.3/x64/lib/python3.12/site-packages/matplotlib/axes/_base.py:3109, in _AxesBase.draw(self, renderer)
3106 if artists_rasterized:
3107 _draw_rasterized(self.figure, artists_rasterized, renderer)
-> 3109 mimage._draw_list_compositing_images(
3110 renderer, self, artists, self.figure.suppressComposite)
3112 renderer.close_group('axes')
3113 self.stale = False
File /opt/hostedtoolcache/Python/3.12.3/x64/lib/python3.12/site-packages/matplotlib/image.py:132, in _draw_list_compositing_images(renderer, parent, artists, suppress_composite)
130 if not_composite or not has_images:
131 for a in artists:
--> 132 a.draw(renderer)
133 else:
134 # Composite any adjacent images together
135 image_group = []
File /opt/hostedtoolcache/Python/3.12.3/x64/lib/python3.12/site-packages/matplotlib/artist.py:72, in allow_rasterization.<locals>.draw_wrapper(artist, renderer)
69 if artist.get_agg_filter() is not None:
70 renderer.start_filter()
---> 72 return draw(artist, renderer)
73 finally:
74 if artist.get_agg_filter() is not None:
File /opt/hostedtoolcache/Python/3.12.3/x64/lib/python3.12/site-packages/matplotlib/image.py:653, in _ImageBase.draw(self, renderer)
651 renderer.draw_image(gc, l, b, im, trans)
652 else:
--> 653 im, l, b, trans = self.make_image(
654 renderer, renderer.get_image_magnification())
655 if im is not None:
656 renderer.draw_image(gc, l, b, im)
File /opt/hostedtoolcache/Python/3.12.3/x64/lib/python3.12/site-packages/matplotlib/image.py:952, in AxesImage.make_image(self, renderer, magnification, unsampled)
949 transformed_bbox = TransformedBbox(bbox, trans)
950 clip = ((self.get_clip_box() or self.axes.bbox) if self.get_clip_on()
951 else self.figure.bbox)
--> 952 return self._make_image(self._A, bbox, transformed_bbox, clip,
953 magnification, unsampled=unsampled)
File /opt/hostedtoolcache/Python/3.12.3/x64/lib/python3.12/site-packages/matplotlib/image.py:539, in _ImageBase._make_image(self, A, in_bbox, out_bbox, clip_bbox, magnification, unsampled, round_to_pixel_border)
537 alpha = self.get_alpha()
538 if alpha is not None and np.ndim(alpha) > 0:
--> 539 out_alpha *= _resample(self, alpha, out_shape,
540 t, resample=True)
541 # mask and run through the norm
542 resampled_masked = np.ma.masked_array(A_resampled, out_mask)
File /opt/hostedtoolcache/Python/3.12.3/x64/lib/python3.12/site-packages/matplotlib/image.py:208, in _resample(image_obj, data, out_shape, transform, resample, alpha)
206 if resample is None:
207 resample = image_obj.get_resample()
--> 208 _image.resample(data, out, transform,
209 _interpd_[interpolation],
210 resample,
211 alpha,
212 image_obj.get_filternorm(),
213 image_obj.get_filterrad())
214 return out
ValueError: arrays must be of dtype byte, short, float32 or float64
---------------------------------------------------------------------------
ValueError Traceback (most recent call last)
File /opt/hostedtoolcache/Python/3.12.3/x64/lib/python3.12/site-packages/IPython/core/formatters.py:343, in BaseFormatter.__call__(self, obj)
341 pass
342 else:
--> 343 return printer(obj)
344 # Finally look for special method names
345 method = get_real_method(obj, self.print_method)
File /opt/hostedtoolcache/Python/3.12.3/x64/lib/python3.12/site-packages/IPython/core/pylabtools.py:170, in print_figure(fig, fmt, bbox_inches, base64, **kwargs)
167 from matplotlib.backend_bases import FigureCanvasBase
168 FigureCanvasBase(fig)
--> 170 fig.canvas.print_figure(bytes_io, **kw)
171 data = bytes_io.getvalue()
172 if fmt == 'svg':
File /opt/hostedtoolcache/Python/3.12.3/x64/lib/python3.12/site-packages/matplotlib/backend_bases.py:2189, in FigureCanvasBase.print_figure(self, filename, dpi, facecolor, edgecolor, orientation, format, bbox_inches, pad_inches, bbox_extra_artists, backend, **kwargs)
2186 # we do this instead of `self.figure.draw_without_rendering`
2187 # so that we can inject the orientation
2188 with getattr(renderer, "_draw_disabled", nullcontext)():
-> 2189 self.figure.draw(renderer)
2190 if bbox_inches:
2191 if bbox_inches == "tight":
File /opt/hostedtoolcache/Python/3.12.3/x64/lib/python3.12/site-packages/matplotlib/artist.py:95, in _finalize_rasterization.<locals>.draw_wrapper(artist, renderer, *args, **kwargs)
93 @wraps(draw)
94 def draw_wrapper(artist, renderer, *args, **kwargs):
---> 95 result = draw(artist, renderer, *args, **kwargs)
96 if renderer._rasterizing:
97 renderer.stop_rasterizing()
File /opt/hostedtoolcache/Python/3.12.3/x64/lib/python3.12/site-packages/matplotlib/artist.py:72, in allow_rasterization.<locals>.draw_wrapper(artist, renderer)
69 if artist.get_agg_filter() is not None:
70 renderer.start_filter()
---> 72 return draw(artist, renderer)
73 finally:
74 if artist.get_agg_filter() is not None:
File /opt/hostedtoolcache/Python/3.12.3/x64/lib/python3.12/site-packages/matplotlib/figure.py:3155, in Figure.draw(self, renderer)
3152 # ValueError can occur when resizing a window.
3154 self.patch.draw(renderer)
-> 3155 mimage._draw_list_compositing_images(
3156 renderer, self, artists, self.suppressComposite)
3158 renderer.close_group('figure')
3159 finally:
File /opt/hostedtoolcache/Python/3.12.3/x64/lib/python3.12/site-packages/matplotlib/image.py:132, in _draw_list_compositing_images(renderer, parent, artists, suppress_composite)
130 if not_composite or not has_images:
131 for a in artists:
--> 132 a.draw(renderer)
133 else:
134 # Composite any adjacent images together
135 image_group = []
File /opt/hostedtoolcache/Python/3.12.3/x64/lib/python3.12/site-packages/matplotlib/artist.py:72, in allow_rasterization.<locals>.draw_wrapper(artist, renderer)
69 if artist.get_agg_filter() is not None:
70 renderer.start_filter()
---> 72 return draw(artist, renderer)
73 finally:
74 if artist.get_agg_filter() is not None:
File /opt/hostedtoolcache/Python/3.12.3/x64/lib/python3.12/site-packages/matplotlib/axes/_base.py:3109, in _AxesBase.draw(self, renderer)
3106 if artists_rasterized:
3107 _draw_rasterized(self.figure, artists_rasterized, renderer)
-> 3109 mimage._draw_list_compositing_images(
3110 renderer, self, artists, self.figure.suppressComposite)
3112 renderer.close_group('axes')
3113 self.stale = False
File /opt/hostedtoolcache/Python/3.12.3/x64/lib/python3.12/site-packages/matplotlib/image.py:132, in _draw_list_compositing_images(renderer, parent, artists, suppress_composite)
130 if not_composite or not has_images:
131 for a in artists:
--> 132 a.draw(renderer)
133 else:
134 # Composite any adjacent images together
135 image_group = []
File /opt/hostedtoolcache/Python/3.12.3/x64/lib/python3.12/site-packages/matplotlib/artist.py:72, in allow_rasterization.<locals>.draw_wrapper(artist, renderer)
69 if artist.get_agg_filter() is not None:
70 renderer.start_filter()
---> 72 return draw(artist, renderer)
73 finally:
74 if artist.get_agg_filter() is not None:
File /opt/hostedtoolcache/Python/3.12.3/x64/lib/python3.12/site-packages/matplotlib/image.py:653, in _ImageBase.draw(self, renderer)
651 renderer.draw_image(gc, l, b, im, trans)
652 else:
--> 653 im, l, b, trans = self.make_image(
654 renderer, renderer.get_image_magnification())
655 if im is not None:
656 renderer.draw_image(gc, l, b, im)
File /opt/hostedtoolcache/Python/3.12.3/x64/lib/python3.12/site-packages/matplotlib/image.py:952, in AxesImage.make_image(self, renderer, magnification, unsampled)
949 transformed_bbox = TransformedBbox(bbox, trans)
950 clip = ((self.get_clip_box() or self.axes.bbox) if self.get_clip_on()
951 else self.figure.bbox)
--> 952 return self._make_image(self._A, bbox, transformed_bbox, clip,
953 magnification, unsampled=unsampled)
File /opt/hostedtoolcache/Python/3.12.3/x64/lib/python3.12/site-packages/matplotlib/image.py:539, in _ImageBase._make_image(self, A, in_bbox, out_bbox, clip_bbox, magnification, unsampled, round_to_pixel_border)
537 alpha = self.get_alpha()
538 if alpha is not None and np.ndim(alpha) > 0:
--> 539 out_alpha *= _resample(self, alpha, out_shape,
540 t, resample=True)
541 # mask and run through the norm
542 resampled_masked = np.ma.masked_array(A_resampled, out_mask)
File /opt/hostedtoolcache/Python/3.12.3/x64/lib/python3.12/site-packages/matplotlib/image.py:208, in _resample(image_obj, data, out_shape, transform, resample, alpha)
206 if resample is None:
207 resample = image_obj.get_resample()
--> 208 _image.resample(data, out, transform,
209 _interpd_[interpolation],
210 resample,
211 alpha,
212 image_obj.get_filternorm(),
213 image_obj.get_filterrad())
214 return out
ValueError: arrays must be of dtype byte, short, float32 or float64
<Figure size 1200x900 with 2 Axes>
Then, we can measure (in reality, approximate or estimate) how much off each voxel of our grid deviates from the nominal field strength.
[12]:
x_coord, y_coord = get_centers(z_slice)
sampled_field = field[y_coord, x_coord]
[13]:
fig, ax, axins = plot_brain(np.ones_like(z_slice) * np.nan, grid=True, voxel_centers_c=sampled_field)
ax.imshow(field, cmap="seismic", origin="lower", alpha=np.ones_like(field) * 0.3);
Error in callback <function _draw_all_if_interactive at 0x7fafe86acd60> (for post_execute), with arguments args (),kwargs {}:
---------------------------------------------------------------------------
ValueError Traceback (most recent call last)
File /opt/hostedtoolcache/Python/3.12.3/x64/lib/python3.12/site-packages/matplotlib/pyplot.py:265, in _draw_all_if_interactive()
263 def _draw_all_if_interactive() -> None:
264 if matplotlib.is_interactive():
--> 265 draw_all()
File /opt/hostedtoolcache/Python/3.12.3/x64/lib/python3.12/site-packages/matplotlib/_pylab_helpers.py:131, in Gcf.draw_all(cls, force)
129 for manager in cls.get_all_fig_managers():
130 if force or manager.canvas.figure.stale:
--> 131 manager.canvas.draw_idle()
File /opt/hostedtoolcache/Python/3.12.3/x64/lib/python3.12/site-packages/matplotlib/backend_bases.py:1919, in FigureCanvasBase.draw_idle(self, *args, **kwargs)
1917 if not self._is_idle_drawing:
1918 with self._idle_draw_cntx():
-> 1919 self.draw(*args, **kwargs)
File /opt/hostedtoolcache/Python/3.12.3/x64/lib/python3.12/site-packages/matplotlib/backends/backend_agg.py:387, in FigureCanvasAgg.draw(self)
384 # Acquire a lock on the shared font cache.
385 with (self.toolbar._wait_cursor_for_draw_cm() if self.toolbar
386 else nullcontext()):
--> 387 self.figure.draw(self.renderer)
388 # A GUI class may be need to update a window using this draw, so
389 # don't forget to call the superclass.
390 super().draw()
File /opt/hostedtoolcache/Python/3.12.3/x64/lib/python3.12/site-packages/matplotlib/artist.py:95, in _finalize_rasterization.<locals>.draw_wrapper(artist, renderer, *args, **kwargs)
93 @wraps(draw)
94 def draw_wrapper(artist, renderer, *args, **kwargs):
---> 95 result = draw(artist, renderer, *args, **kwargs)
96 if renderer._rasterizing:
97 renderer.stop_rasterizing()
File /opt/hostedtoolcache/Python/3.12.3/x64/lib/python3.12/site-packages/matplotlib/artist.py:72, in allow_rasterization.<locals>.draw_wrapper(artist, renderer)
69 if artist.get_agg_filter() is not None:
70 renderer.start_filter()
---> 72 return draw(artist, renderer)
73 finally:
74 if artist.get_agg_filter() is not None:
File /opt/hostedtoolcache/Python/3.12.3/x64/lib/python3.12/site-packages/matplotlib/figure.py:3155, in Figure.draw(self, renderer)
3152 # ValueError can occur when resizing a window.
3154 self.patch.draw(renderer)
-> 3155 mimage._draw_list_compositing_images(
3156 renderer, self, artists, self.suppressComposite)
3158 renderer.close_group('figure')
3159 finally:
File /opt/hostedtoolcache/Python/3.12.3/x64/lib/python3.12/site-packages/matplotlib/image.py:132, in _draw_list_compositing_images(renderer, parent, artists, suppress_composite)
130 if not_composite or not has_images:
131 for a in artists:
--> 132 a.draw(renderer)
133 else:
134 # Composite any adjacent images together
135 image_group = []
File /opt/hostedtoolcache/Python/3.12.3/x64/lib/python3.12/site-packages/matplotlib/artist.py:72, in allow_rasterization.<locals>.draw_wrapper(artist, renderer)
69 if artist.get_agg_filter() is not None:
70 renderer.start_filter()
---> 72 return draw(artist, renderer)
73 finally:
74 if artist.get_agg_filter() is not None:
File /opt/hostedtoolcache/Python/3.12.3/x64/lib/python3.12/site-packages/matplotlib/axes/_base.py:3109, in _AxesBase.draw(self, renderer)
3106 if artists_rasterized:
3107 _draw_rasterized(self.figure, artists_rasterized, renderer)
-> 3109 mimage._draw_list_compositing_images(
3110 renderer, self, artists, self.figure.suppressComposite)
3112 renderer.close_group('axes')
3113 self.stale = False
File /opt/hostedtoolcache/Python/3.12.3/x64/lib/python3.12/site-packages/matplotlib/image.py:132, in _draw_list_compositing_images(renderer, parent, artists, suppress_composite)
130 if not_composite or not has_images:
131 for a in artists:
--> 132 a.draw(renderer)
133 else:
134 # Composite any adjacent images together
135 image_group = []
File /opt/hostedtoolcache/Python/3.12.3/x64/lib/python3.12/site-packages/matplotlib/artist.py:72, in allow_rasterization.<locals>.draw_wrapper(artist, renderer)
69 if artist.get_agg_filter() is not None:
70 renderer.start_filter()
---> 72 return draw(artist, renderer)
73 finally:
74 if artist.get_agg_filter() is not None:
File /opt/hostedtoolcache/Python/3.12.3/x64/lib/python3.12/site-packages/matplotlib/image.py:653, in _ImageBase.draw(self, renderer)
651 renderer.draw_image(gc, l, b, im, trans)
652 else:
--> 653 im, l, b, trans = self.make_image(
654 renderer, renderer.get_image_magnification())
655 if im is not None:
656 renderer.draw_image(gc, l, b, im)
File /opt/hostedtoolcache/Python/3.12.3/x64/lib/python3.12/site-packages/matplotlib/image.py:952, in AxesImage.make_image(self, renderer, magnification, unsampled)
949 transformed_bbox = TransformedBbox(bbox, trans)
950 clip = ((self.get_clip_box() or self.axes.bbox) if self.get_clip_on()
951 else self.figure.bbox)
--> 952 return self._make_image(self._A, bbox, transformed_bbox, clip,
953 magnification, unsampled=unsampled)
File /opt/hostedtoolcache/Python/3.12.3/x64/lib/python3.12/site-packages/matplotlib/image.py:539, in _ImageBase._make_image(self, A, in_bbox, out_bbox, clip_bbox, magnification, unsampled, round_to_pixel_border)
537 alpha = self.get_alpha()
538 if alpha is not None and np.ndim(alpha) > 0:
--> 539 out_alpha *= _resample(self, alpha, out_shape,
540 t, resample=True)
541 # mask and run through the norm
542 resampled_masked = np.ma.masked_array(A_resampled, out_mask)
File /opt/hostedtoolcache/Python/3.12.3/x64/lib/python3.12/site-packages/matplotlib/image.py:208, in _resample(image_obj, data, out_shape, transform, resample, alpha)
206 if resample is None:
207 resample = image_obj.get_resample()
--> 208 _image.resample(data, out, transform,
209 _interpd_[interpolation],
210 resample,
211 alpha,
212 image_obj.get_filternorm(),
213 image_obj.get_filterrad())
214 return out
ValueError: arrays must be of dtype byte, short, float32 or float64
---------------------------------------------------------------------------
ValueError Traceback (most recent call last)
File /opt/hostedtoolcache/Python/3.12.3/x64/lib/python3.12/site-packages/IPython/core/formatters.py:343, in BaseFormatter.__call__(self, obj)
341 pass
342 else:
--> 343 return printer(obj)
344 # Finally look for special method names
345 method = get_real_method(obj, self.print_method)
File /opt/hostedtoolcache/Python/3.12.3/x64/lib/python3.12/site-packages/IPython/core/pylabtools.py:170, in print_figure(fig, fmt, bbox_inches, base64, **kwargs)
167 from matplotlib.backend_bases import FigureCanvasBase
168 FigureCanvasBase(fig)
--> 170 fig.canvas.print_figure(bytes_io, **kw)
171 data = bytes_io.getvalue()
172 if fmt == 'svg':
File /opt/hostedtoolcache/Python/3.12.3/x64/lib/python3.12/site-packages/matplotlib/backend_bases.py:2189, in FigureCanvasBase.print_figure(self, filename, dpi, facecolor, edgecolor, orientation, format, bbox_inches, pad_inches, bbox_extra_artists, backend, **kwargs)
2186 # we do this instead of `self.figure.draw_without_rendering`
2187 # so that we can inject the orientation
2188 with getattr(renderer, "_draw_disabled", nullcontext)():
-> 2189 self.figure.draw(renderer)
2190 if bbox_inches:
2191 if bbox_inches == "tight":
File /opt/hostedtoolcache/Python/3.12.3/x64/lib/python3.12/site-packages/matplotlib/artist.py:95, in _finalize_rasterization.<locals>.draw_wrapper(artist, renderer, *args, **kwargs)
93 @wraps(draw)
94 def draw_wrapper(artist, renderer, *args, **kwargs):
---> 95 result = draw(artist, renderer, *args, **kwargs)
96 if renderer._rasterizing:
97 renderer.stop_rasterizing()
File /opt/hostedtoolcache/Python/3.12.3/x64/lib/python3.12/site-packages/matplotlib/artist.py:72, in allow_rasterization.<locals>.draw_wrapper(artist, renderer)
69 if artist.get_agg_filter() is not None:
70 renderer.start_filter()
---> 72 return draw(artist, renderer)
73 finally:
74 if artist.get_agg_filter() is not None:
File /opt/hostedtoolcache/Python/3.12.3/x64/lib/python3.12/site-packages/matplotlib/figure.py:3155, in Figure.draw(self, renderer)
3152 # ValueError can occur when resizing a window.
3154 self.patch.draw(renderer)
-> 3155 mimage._draw_list_compositing_images(
3156 renderer, self, artists, self.suppressComposite)
3158 renderer.close_group('figure')
3159 finally:
File /opt/hostedtoolcache/Python/3.12.3/x64/lib/python3.12/site-packages/matplotlib/image.py:132, in _draw_list_compositing_images(renderer, parent, artists, suppress_composite)
130 if not_composite or not has_images:
131 for a in artists:
--> 132 a.draw(renderer)
133 else:
134 # Composite any adjacent images together
135 image_group = []
File /opt/hostedtoolcache/Python/3.12.3/x64/lib/python3.12/site-packages/matplotlib/artist.py:72, in allow_rasterization.<locals>.draw_wrapper(artist, renderer)
69 if artist.get_agg_filter() is not None:
70 renderer.start_filter()
---> 72 return draw(artist, renderer)
73 finally:
74 if artist.get_agg_filter() is not None:
File /opt/hostedtoolcache/Python/3.12.3/x64/lib/python3.12/site-packages/matplotlib/axes/_base.py:3109, in _AxesBase.draw(self, renderer)
3106 if artists_rasterized:
3107 _draw_rasterized(self.figure, artists_rasterized, renderer)
-> 3109 mimage._draw_list_compositing_images(
3110 renderer, self, artists, self.figure.suppressComposite)
3112 renderer.close_group('axes')
3113 self.stale = False
File /opt/hostedtoolcache/Python/3.12.3/x64/lib/python3.12/site-packages/matplotlib/image.py:132, in _draw_list_compositing_images(renderer, parent, artists, suppress_composite)
130 if not_composite or not has_images:
131 for a in artists:
--> 132 a.draw(renderer)
133 else:
134 # Composite any adjacent images together
135 image_group = []
File /opt/hostedtoolcache/Python/3.12.3/x64/lib/python3.12/site-packages/matplotlib/artist.py:72, in allow_rasterization.<locals>.draw_wrapper(artist, renderer)
69 if artist.get_agg_filter() is not None:
70 renderer.start_filter()
---> 72 return draw(artist, renderer)
73 finally:
74 if artist.get_agg_filter() is not None:
File /opt/hostedtoolcache/Python/3.12.3/x64/lib/python3.12/site-packages/matplotlib/image.py:653, in _ImageBase.draw(self, renderer)
651 renderer.draw_image(gc, l, b, im, trans)
652 else:
--> 653 im, l, b, trans = self.make_image(
654 renderer, renderer.get_image_magnification())
655 if im is not None:
656 renderer.draw_image(gc, l, b, im)
File /opt/hostedtoolcache/Python/3.12.3/x64/lib/python3.12/site-packages/matplotlib/image.py:952, in AxesImage.make_image(self, renderer, magnification, unsampled)
949 transformed_bbox = TransformedBbox(bbox, trans)
950 clip = ((self.get_clip_box() or self.axes.bbox) if self.get_clip_on()
951 else self.figure.bbox)
--> 952 return self._make_image(self._A, bbox, transformed_bbox, clip,
953 magnification, unsampled=unsampled)
File /opt/hostedtoolcache/Python/3.12.3/x64/lib/python3.12/site-packages/matplotlib/image.py:539, in _ImageBase._make_image(self, A, in_bbox, out_bbox, clip_bbox, magnification, unsampled, round_to_pixel_border)
537 alpha = self.get_alpha()
538 if alpha is not None and np.ndim(alpha) > 0:
--> 539 out_alpha *= _resample(self, alpha, out_shape,
540 t, resample=True)
541 # mask and run through the norm
542 resampled_masked = np.ma.masked_array(A_resampled, out_mask)
File /opt/hostedtoolcache/Python/3.12.3/x64/lib/python3.12/site-packages/matplotlib/image.py:208, in _resample(image_obj, data, out_shape, transform, resample, alpha)
206 if resample is None:
207 resample = image_obj.get_resample()
--> 208 _image.resample(data, out, transform,
209 _interpd_[interpolation],
210 resample,
211 alpha,
212 image_obj.get_filternorm(),
213 image_obj.get_filterrad())
214 return out
ValueError: arrays must be of dtype byte, short, float32 or float64
<Figure size 1200x900 with 2 Axes>
Those sampled deviations from the nominal field (\(\Delta B_\text{0}\)) can be plotted on top of our brain slice, to see where voxels are fairly close to their nominal value (e.g., those two white dots in the ventricles at the middle) and those furtherr from it (e.g., two voxels towards the anterior commissure which are very reddish).
[14]:
fig, ax, axins = plot_brain(z_slice, grid=True, voxel_centers_c=sampled_field)
The second ingredient of the distortion cocktail - acquisition trade-offs¶
In addition to that issue, this problem becomes only apparent when some of the encoding directions has very limited bandwidth. Normally, anatomical images (MPRAGE, MP2RAGE, T2-SPACE, SPGR, etc.) have sufficient bandwidth in all encoding axes so that distortions are not appreciable.
However, echo-planar imaging (EPI) is designed to acquire extremelly fast - at the cost of reducing the bandwidth of the phase encoding direction.
When we have this limitation, the scanner will think it’s sampling at the regular grid above, but in turn, the signal will be coming from slightly displaced locations along the phase-encoding (PE) axis, that is, the encoding axis with lowest bandwidth (acquired fastest).
The formulae governing this distortion are described in the SDCFlows documentation.
[15]:
trt = - 0.15 # in seconds
[16]:
fig, ax, axins = plot_brain(z_slice, grid=False)
# Voxel edges
e_i = np.arange(0, z_slice.shape[1], step=12).astype(int)
e_j = np.arange(0, z_slice.shape[0], step=12).astype(int)
y_coord_moved = y_coord + trt * sampled_field
is_in_fov = (y_coord_moved > 0) & (y_coord_moved < field.shape[0] - 1)
ax.scatter(np.array(x_coord)[is_in_fov], y_coord_moved[is_in_fov], c=sampled_field[is_in_fov], s=20, cmap="seismic")
ax.plot([e_i[1:-1]] * len(e_j), e_j, c='k', lw=1, alpha=0.3);
axins.scatter(np.array(x_coord)[is_in_fov], y_coord_moved[is_in_fov], c=sampled_field[is_in_fov], s=80, cmap="seismic")
axins.plot([e_i[1:-1]] * len(e_j), e_j, c='k', lw=1, alpha=0.3);
j_axis = np.arange(z_slice.shape[1], dtype=int)
for i in e_j:
warped_edges = i + trt * field[i, :]
warped_edges[warped_edges <= 0] = np.nan
warped_edges[warped_edges >= field.shape[0] - 1] = np.nan
ax.plot(j_axis, warped_edges, c='k', lw=1, alpha=0.5);
axins.plot(j_axis, warped_edges, c='k', lw=1, alpha=0.5);
The effects of this physical phenomenon¶

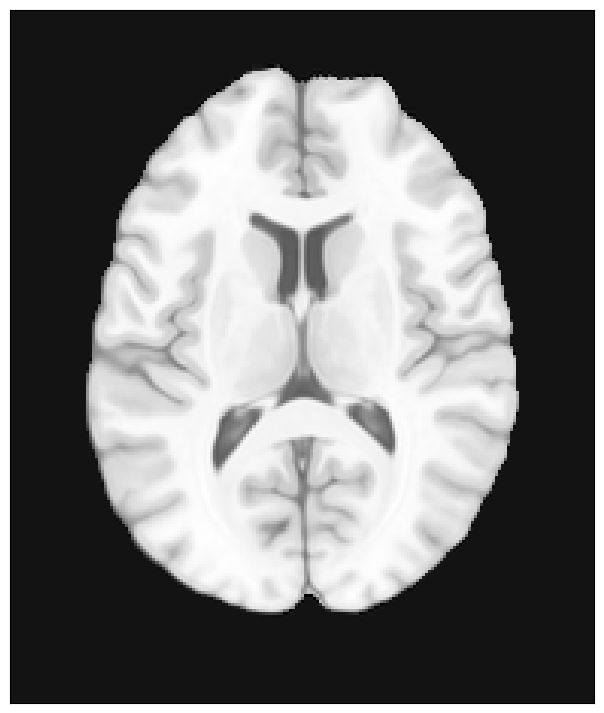

Then the MRI device will execute the EPI scanning scheme, and sample at the locations given above. The result can be seen in the image below:
[17]:
all_indexes = tuple([np.arange(s) for s in z_slice.shape])
all_ndindex = np.array(np.meshgrid(*all_indexes, indexing="ij")).reshape(2, -1)
[18]:
all_ndindex_warped = all_ndindex.astype("float32")
all_ndindex_warped[0, :] += trt * field.reshape(-1)
[19]:
warped_brain = ndi.map_coordinates(
z_s,
all_ndindex_warped,
).reshape(z_slice.shape)
plt.imshow(warped_brain, origin="lower", cmap="Greys_r");

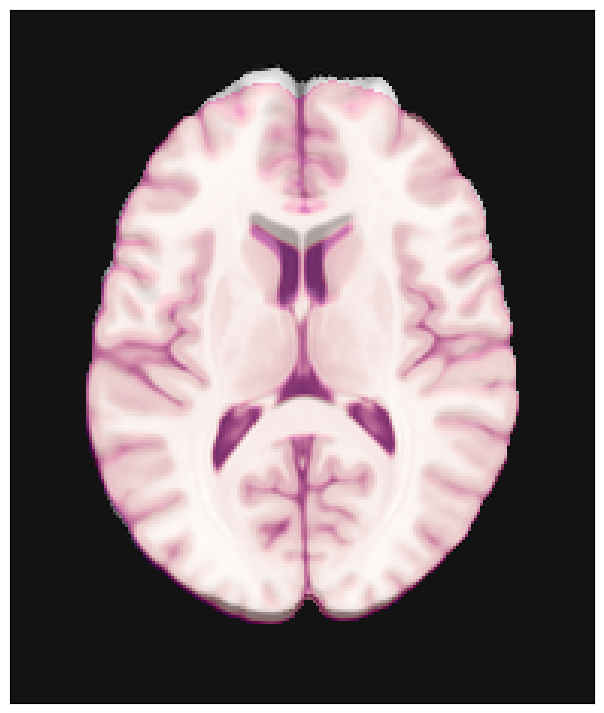

For reference, we can plot our MRI (grayscale colormap) fused with the original (ground-truth) anatomy.
[20]:
plt.imshow(warped_brain, cmap="Greys_r", origin="lower")
plt.imshow(z_slice, cmap="RdPu_r", alpha=0.5, origin="lower");
The effect if the PE direction is reversed (“negative blips”)¶

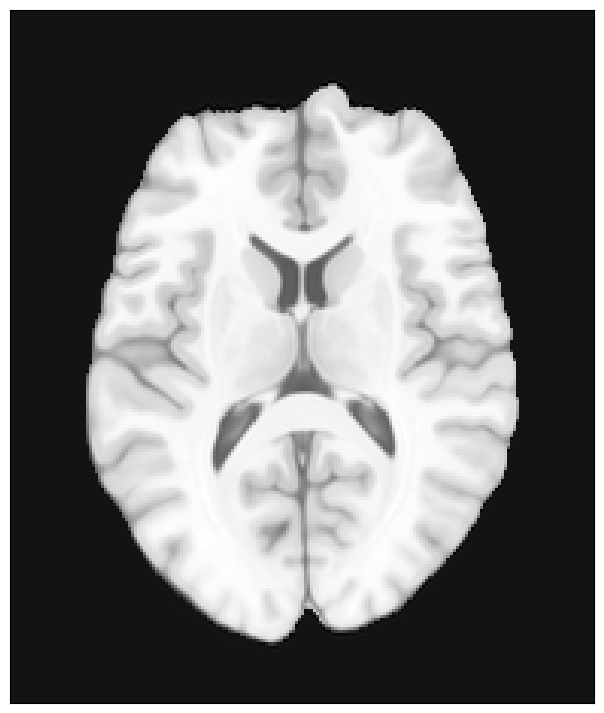

Then, the distortion happens exactly on the opposed direction:
[21]:
all_ndindex_warped = all_ndindex.astype("float32")
all_ndindex_warped[0, :] -= trt * field.reshape(-1)
warped_brain = ndi.map_coordinates(
z_s,
all_ndindex_warped,
).reshape(z_slice.shape)
plt.imshow(warped_brain, cmap="Greys_r", origin="lower");

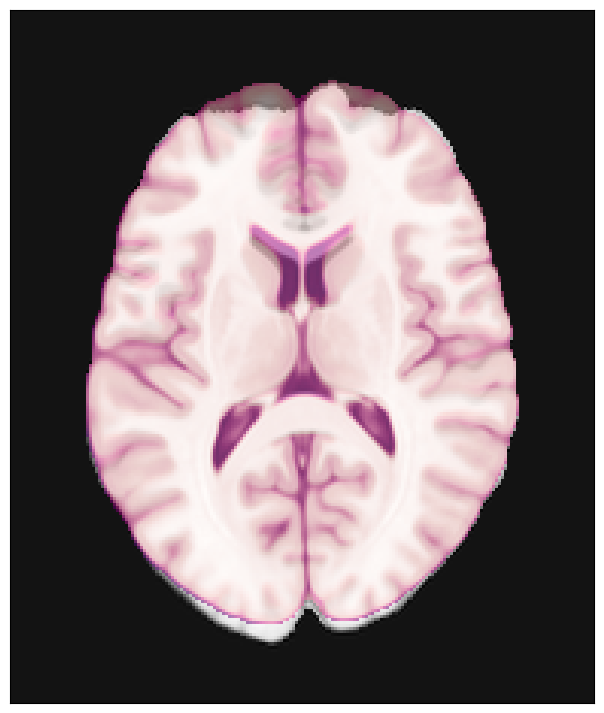

[22]:
plt.imshow(warped_brain, cmap="Greys_r")
plt.imshow(z_slice, cmap="RdPu_r", alpha=0.5, origin="lower");
[ ]:
[ ]:
